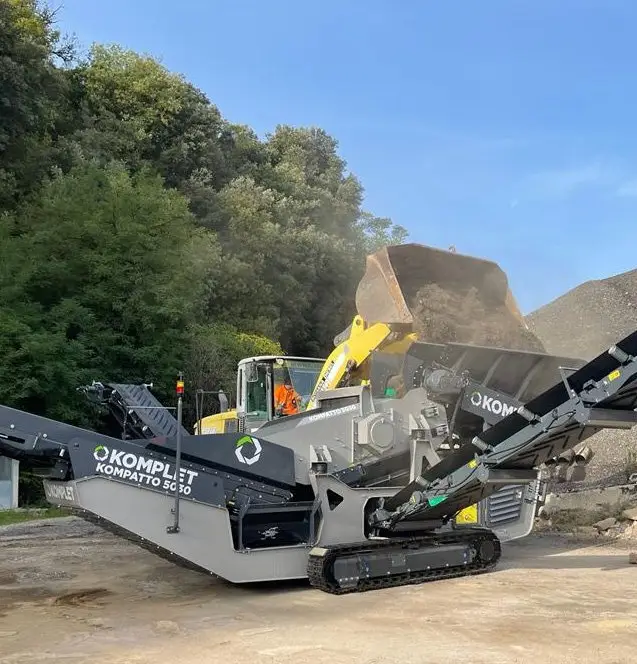

Kompatto 5030: Mobile 3-way-split screener
The high-output Kompatto is a 250 tph incline screener that converts hydraulically between a three-way and two-way split.
/ overview
The Komplet Kompatto 5030 is a mobile screener rated to 250 tph (280 US tph), built around a heavy-duty single-shaft incline screenbox. Its headline feature is a rapid hydraulic conversion between a three-way split (three sized products) and a two-way split (two products), so one machine covers both jobs without a rebuild. The screenbox has a 2,450 × 970 mm top deck and a 2,190 × 970 mm lower deck, with adjustable stroke and speed to tune the cut, and a variable-speed hopper meters feed to hold throughput steady. At 12,000 kg and 35 kW (45 Hp) it transports readily and pairs with a crusher to make a finished, sized product in one pass.
Applications: Aggregate producers and recyclers making multiple sized products such as road base, drainage stone and sand in one pass.
Also available to hire/ features
What sets it apart.
-
Rapid 3-way to 2-way conversion
Switch hydraulically between a three-product and two-product split with no strip-down and minimal downtime.
-
Heavy-duty incline screenbox
A single-shaft incline screenbox handles demanding aggregate and recycling duty at up to 250 tph.
-
Adjustable stroke and speed
Tune screenbox stroke and speed to the material to sharpen the cut and lift capacity.
-
Variable-speed hopper
Meters feed to the screenbox to hold throughput steady and stop the deck flooding.
-
Hydraulic folding conveyors
Fold the conveyors for transport and unfold on-site for a fast, one-operator setup.
-
Pairs with a crusher
Take crusher discharge straight to two or three finished, saleable products in a single pass.
