/ Komplet · crushers

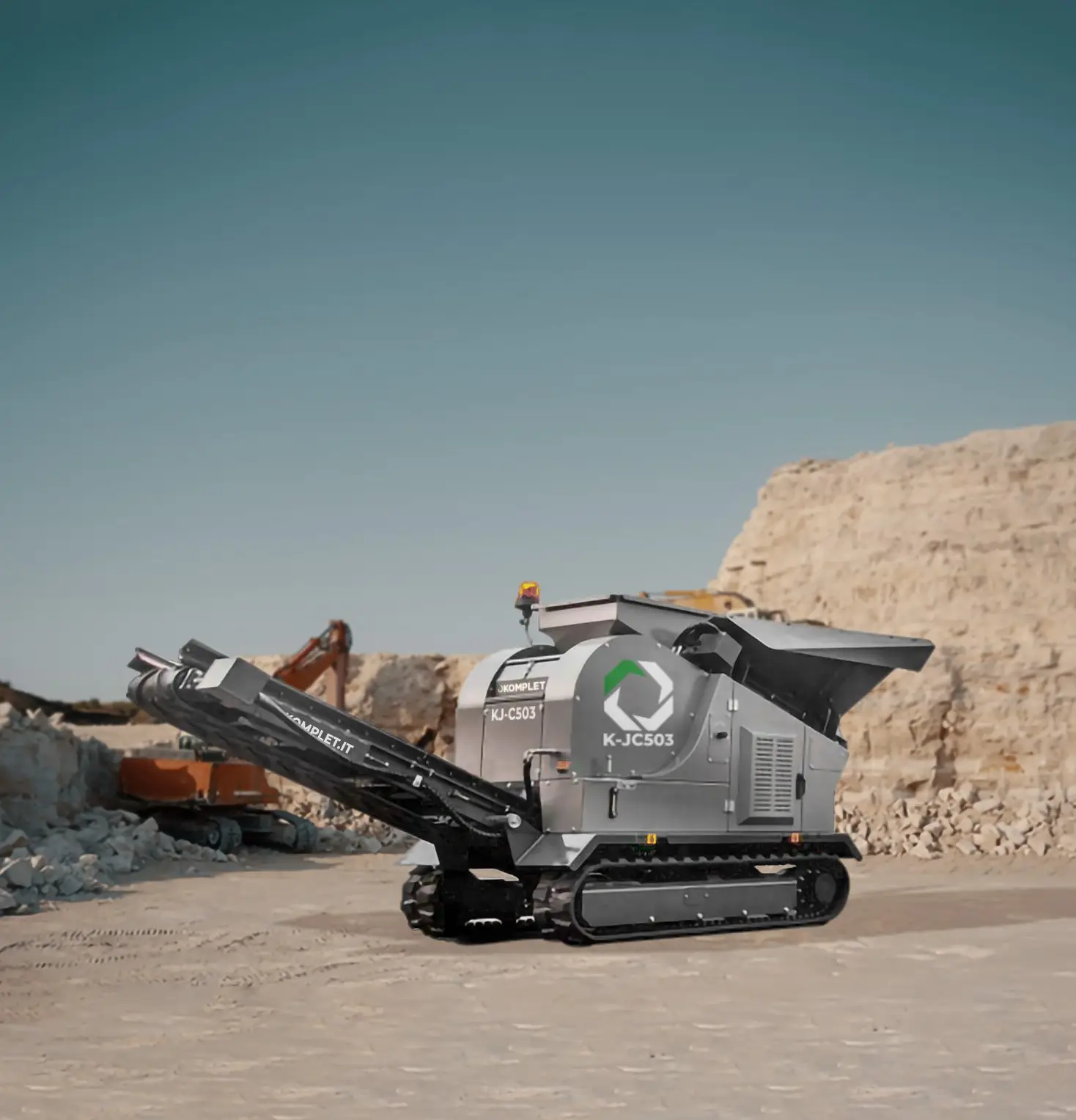

K-JC 503: Compact jaw crusher
The smallest Komplet jaw is a 3,400 kg crusher that fits through a gateway and works inside a demolition.
/ overview
The Komplet K-JC 503 is the smallest jaw crusher in the Komplet range, a compact tracked machine rated to 30 tph through a 500 × 300 mm jaw and producing a 20–80 mm product. At just 3,400 kg it is light enough to float on a small trailer and narrow enough to track through a standard gateway or doorway, so it can crush inside a partial demolition, in a basement or on a fenced-in urban block where nothing bigger fits. A single-toggle jaw with hydraulic jaw adjustment handles reinforced concrete, brick and rubble, turning it into reusable aggregate on the spot.
Applications: Tight-access and internal demolition, urban infill blocks, landscapers and small civil contractors processing their own concrete and brick.
Also available to hire/ features
What sets it apart.
-
The smallest Komplet jaw
At 3,400 kg it is a fraction of the weight of a full crusher, light enough to float on a small trailer.
-
Fits where nothing else does
A narrow track base gets it through gateways and doorways to crush inside a demolition or on a fenced urban block.
-
Single-toggle jaw
A 500 × 300 mm jaw with hydraulic jaw adjustment handles rebar-laced concrete.
-
Up to 30 tph
An 18.5 kW drive crushes concrete, brick and rubble at up to 30 tph, enough for small demolition and site work.
-
20–80 mm product
Adjustable closed-side setting gives a usable 20–80 mm aggregate straight off the belt.
-
Crush on-site, cart nothing
Turn demolition waste into reusable aggregate where it falls and skip the trucking and tip fees.
