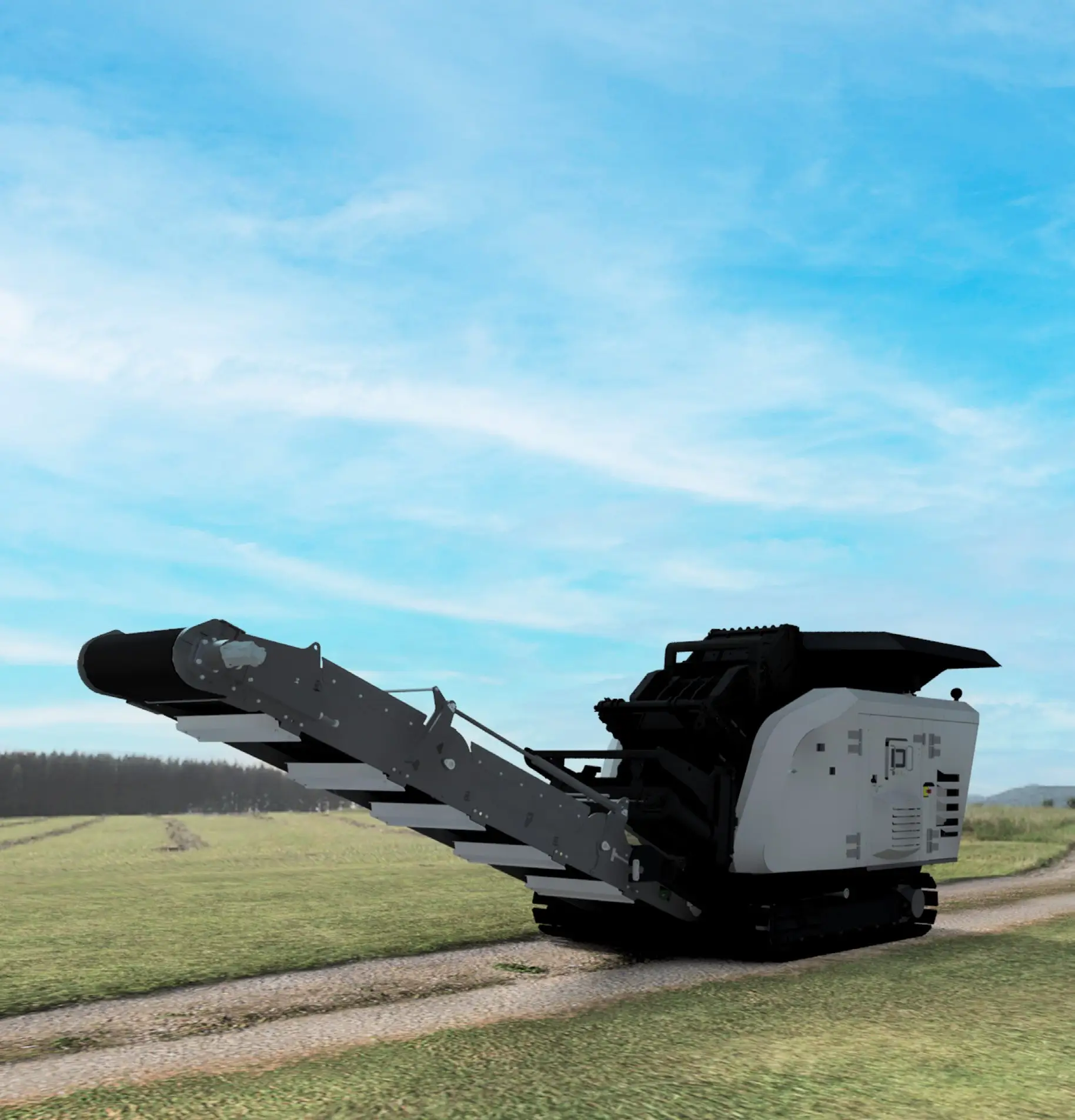

K-IC 70: Compact impact crusher
The compact impactor shapes recycled concrete, asphalt and light aggregate into a cubical product with one machine.
/ overview
The Komplet K-IC 70 is a compact impact crusher rated to 80 tph, taking feed through a 650 × 500 mm inlet and producing a 20–80 mm product. Where a jaw crusher splits material, an impactor hammers it against an adjustable breaker for a more cubical, better-shaped aggregate. That is why it suits recycled concrete, asphalt and soft natural rock destined for reuse. At 13,000 kg with a 75 kW diesel engine, it moves between sites easily and runs with one operator. It is the impact option when product shape and a clean finished spec matter more than raw crushing force.
Applications: Recycled concrete and asphalt, light natural rock and aggregate producers who need a clean, cubical finished product.
Also available to hire/ features
What sets it apart.
-
Impactor, not a jaw
It breaks material against an adjustable impact wall rather than crushing it, giving a more cubical, better-shaped aggregate.
-
Up to 80 tph
A 75 kW diesel drive pushes concrete, asphalt and soft rock through at up to 80 tph.
-
650 × 500 mm inlet
A wide feed opening swallows slab and asphalt lump without constant hand-breaking at the hopper.
-
Adjustable 20–80 mm output
Set the breaker gap to drop a consistent 20–80 mm product straight onto the discharge belt.
-
Compact and transportable
At 13,000 kg it moves between sites easily and runs with a single operator.
-
Cut cartage and tip fees
Crush your own concrete and asphalt on-site and reuse it instead of trucking waste out and buying aggregate back in.
